■ 基本信息
別名: | pET28GSTLIC |
啟動子: | T7 |
復制子: | pBR322 |
終止子: | T7 terminator |
質粒大小: | 7998bp |
質粒標簽: | N-GST,N-6×HIS，N-thrombin site，SacB |
原核抗性: | Kan |
真核抗性: | SacB |
克隆菌株: | DH5a |
培養條件: | 37℃，有氧，LB |
表達宿主: | 大腸桿菌BL21(DE3) |
誘導方式: | IPTG和乳糖及其類似物 |
5'測序引物: | T7：TAATACGACTCACTATAGGG |
3'測序引物: | T7-ter：TGCTAGTTATTGCTCAGCGG |
■ 質粒屬性
質粒宿主: | 大腸桿菌 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Kan |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pET28GST-LIC質粒是一個大腸桿菌表達載體，T7啟動子驅動GST和融合表達一起表達，載體上有SacB致死基因，可通過5%蔗糖來篩選陽性克隆。
The pET28GST-LIC vector was derived from expression plasmid pET28a-LIC (SGC) by inserting the GST-tag from pET41a (Novagen) into the XbaI and NcoI sites. It is used for T7 promoter driven expression of recombinant proteins with the addition of a 242 amino acid N-terminal fusion tag containing the 217 amino acid GST-tag protein followed by a 6X His followed by a thrombin cleavage site. Two stop codons are included in the vector at the C-terminal cloning site.Insertion of DNA sequence into the cloning/expression region is preformed using BD-Biosciences Infusion enzyme mediated directional recombination between complementary 15 nucleotide DNA sequences at the ends of the insert (PCR product) and BseRI linearized vector. Insertion of target sequence involves replacement of a SacB gene stuffer sequence, which provides for negative selection of the original plasmid on 5% sucrose.
質粒只保證關鍵序列正確，不保證表達效果。

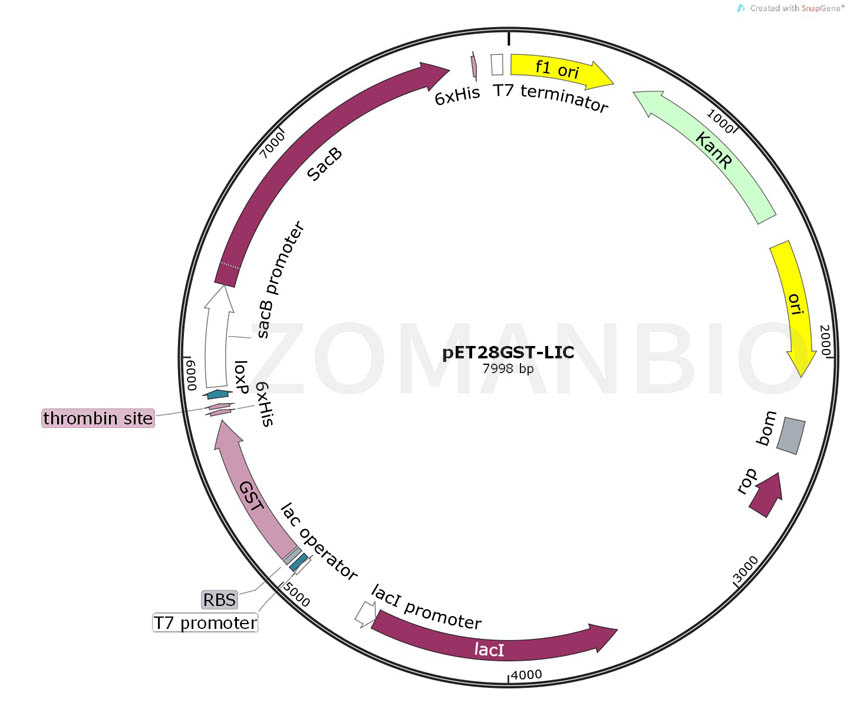

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK164pET28GST-LIC大腸表達質粒.txt
